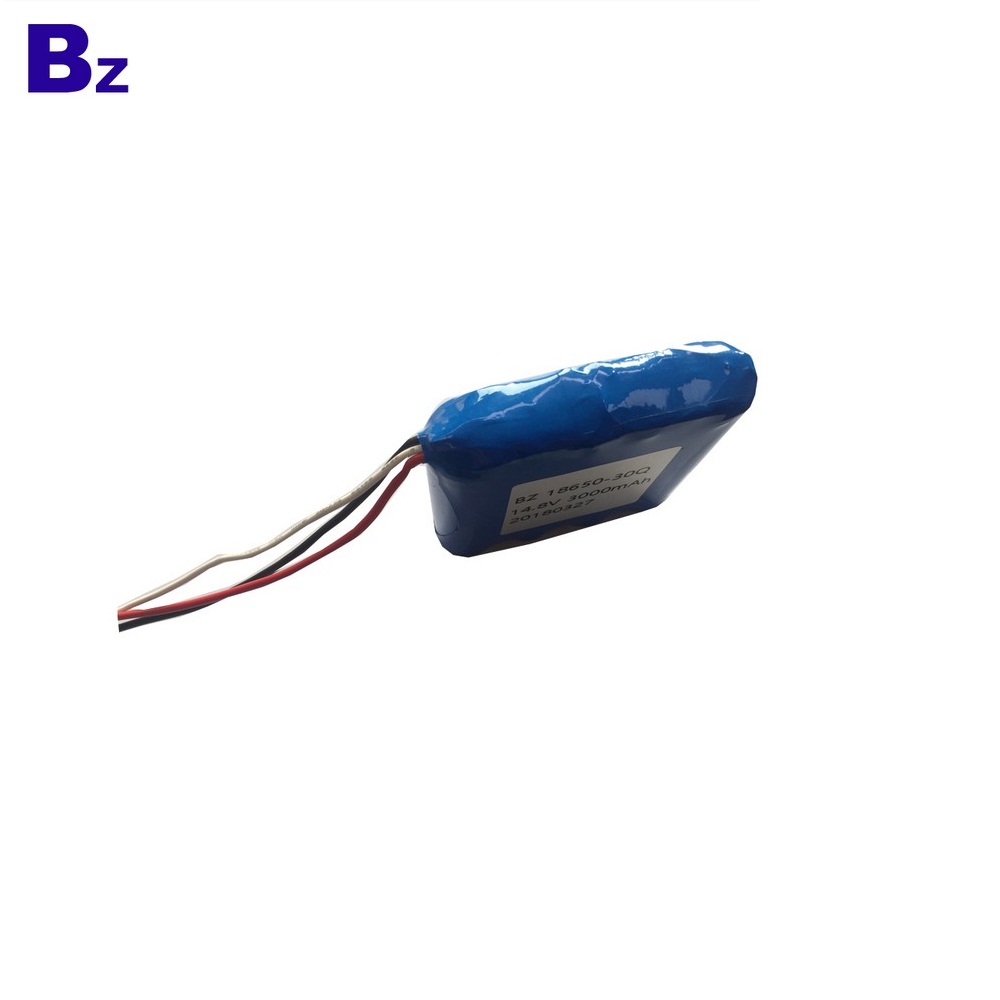

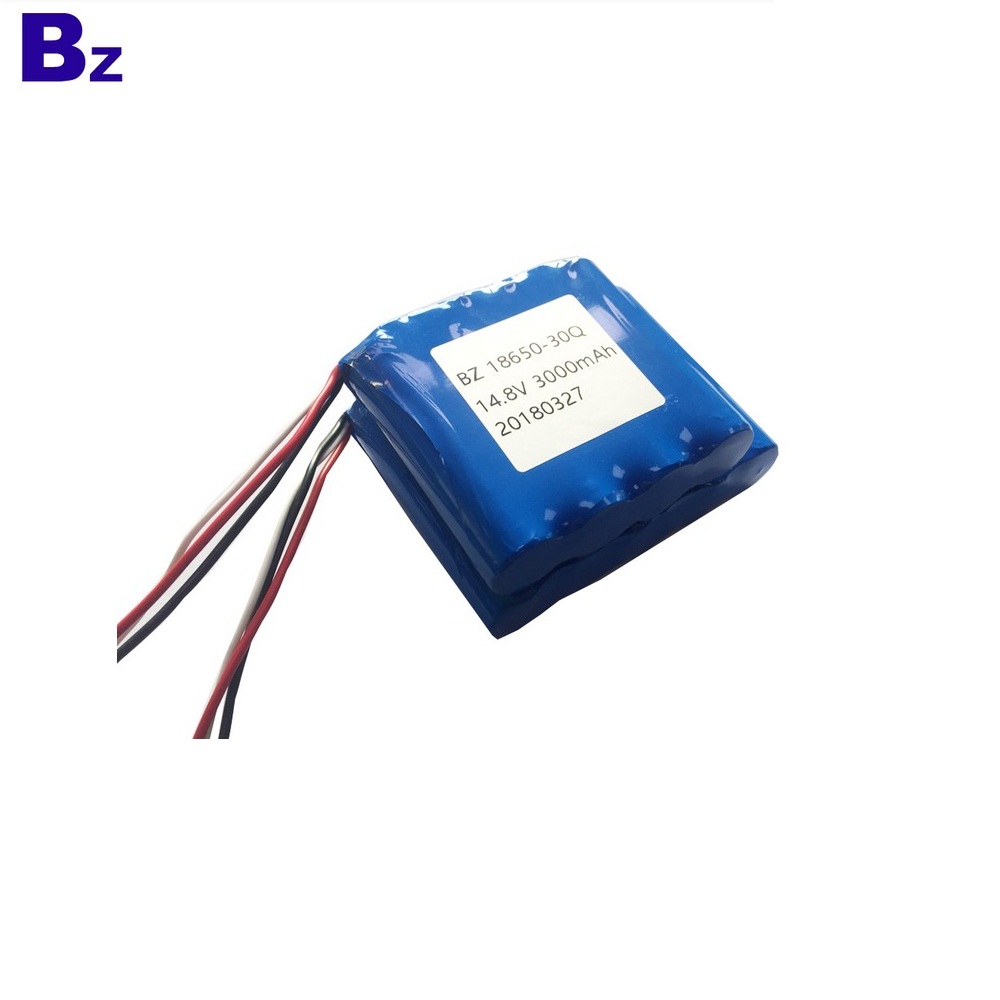

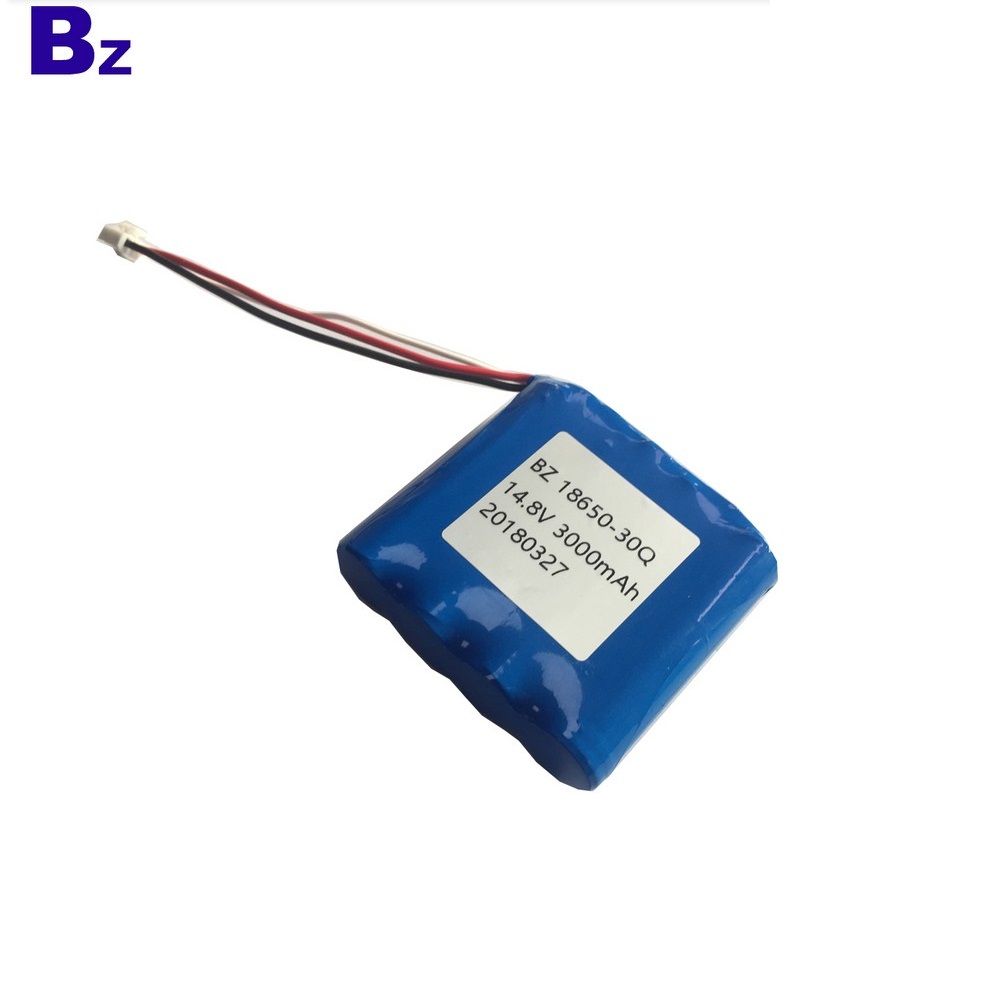

手持式電動工具電池 BZ 18650-30Q-4S 3000mah 15A放電14.8V 鋰離子電池
$19.00
In stock
SKU
18650-30Q-4S 3000mAh
價格：US $ 1.2-1.5 /安培
最低訂購：1,000安培
如需訂購鋰電池請聯繫我們！
原產地：廣東，中國（大陸）
品牌名稱：BZ
型號：18650-4S
類型：鋰聚合物
標稱電壓：14.8V
尺寸：18650
標稱容量：3000mAh
循環壽命：500次
應用：手持式電動工具電池
重量：250G
保修：1年
電池類型：鋰離子電池
標準收費：1C
證書：CE / RoHS / UN38.3 / MSDS
付款方式：Paypal.TT.Escrow.Western Union
Product Parameters
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 3100mAh | Standard discharge(5C C5A) after Standard charge |
| Minimum | 3000mAh | |||
| 2 | Nominal Voltage | 14.8V | Mean Operation Voltage | |
| 3 | Voltage at end of | 12V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 16.8±0.03V | ||
| 5 | Internal Impedance | ≤160mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 5 C5A | ||
| end voltage 12V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 5C5A | ||
| end voltage 12V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | 3A | |
| 11 | Maximum Continuous Discharge Current | 5C5A | 15A | |
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| less than 3 months: -20~40℃ | at the shipment state | |||
| 14 | Pack Dimension |
High:.max73mm Width: max69mm Thickness: max19mm |
Initial Dimension | |
