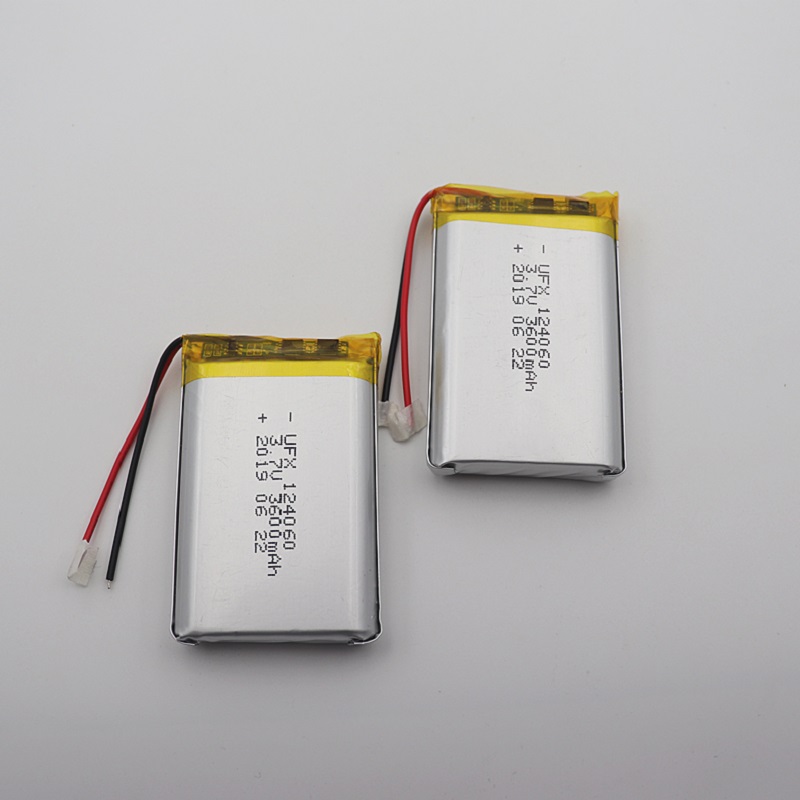

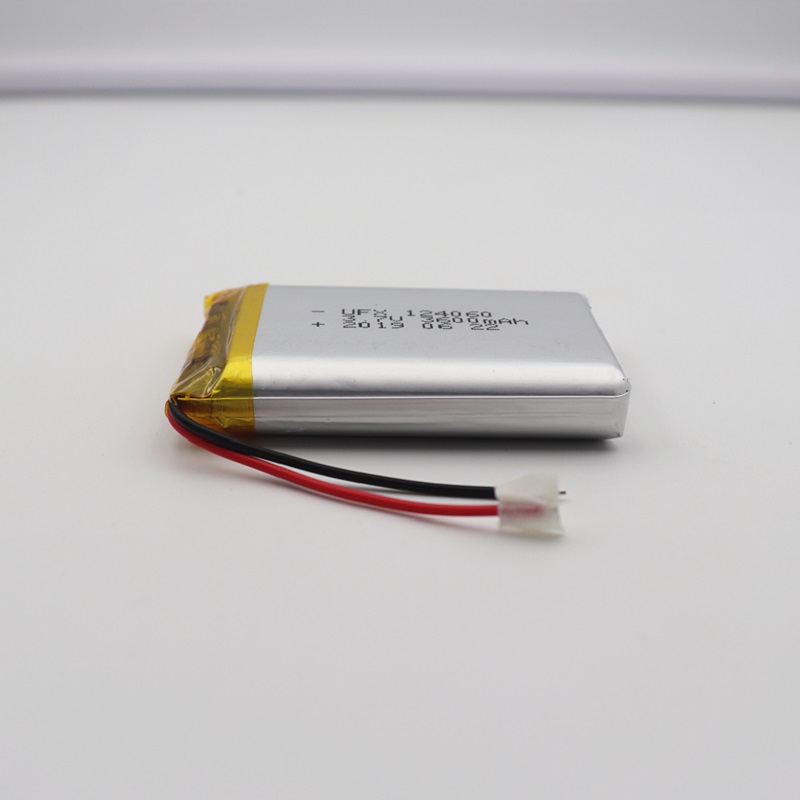

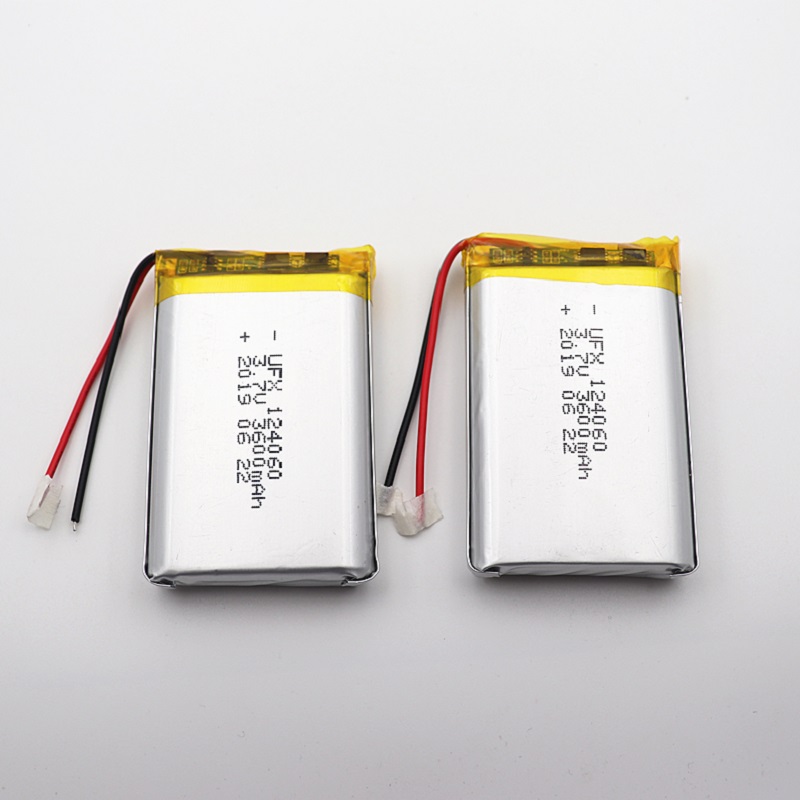

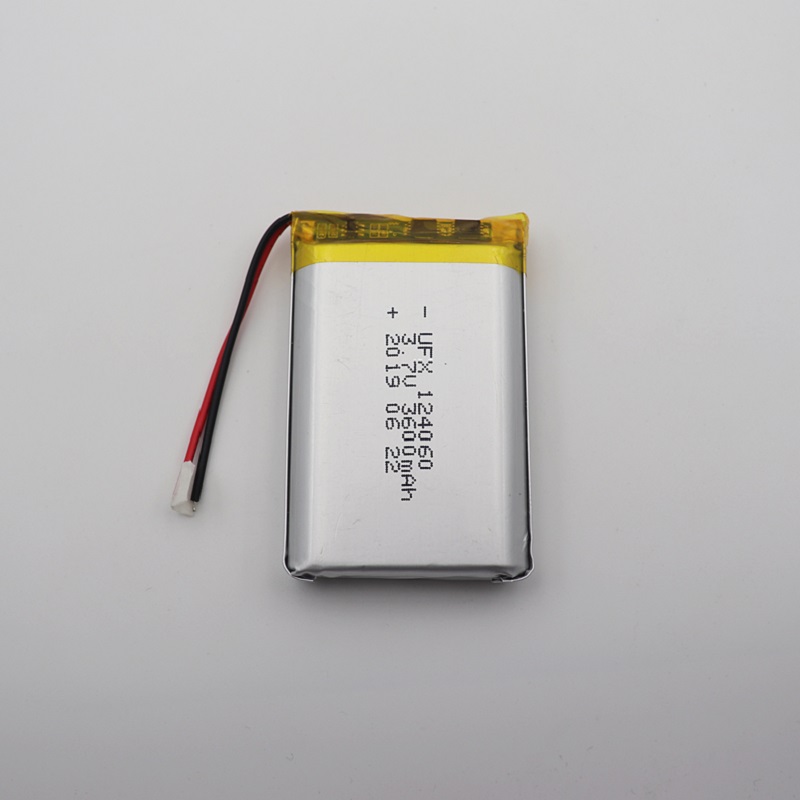

中國鋰電池供應商批發廉價醫療設備鋰聚合物電池 UFX 124060 3600mah 3.7V 鋰電池
價格：US $ 1.2-1.5 /安培
最低訂購：1,000安培
如需訂購鋰電池請聯繫我們！
產地：中國廣東
品牌名稱：UFX
型號：124060
類型：鋰聚合物
標稱電壓：3.7V
尺寸：12*40*62mm
標稱容量：3600mAh
循環壽命：500次
證書：CE/RoHS/UN38.3/MSDS/FCC
重量：65克
保固期：12 個月
電池類型：鋰聚合物電池
型號：124060
電壓：3.7V
容量：3600mAh
應用：電子設備
充電電流：0.2C~1C
Specification:
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
3650mAh |
Standard discharge(0.2C C5A) after Standard charge |
|
Minimum |
3600mAh |
|||
|
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of |
3.0V |
Discharge Cut-off Voltage |
|
|
Discharge |
||||
|
4 |
Charging Voltage |
4.2±0.03V |
||
|
5 |
Internal Impedance |
≤70mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
|
6 |
Standard charge |
Constant Current 0.2C5A |
Charge time : Approx 6h |
|
|
Constant Voltage 4.2V |
||||
|
0.01 C5A cut-off |
||||
|
7 |
Standard discharge |
Constant current 0.2 C5A |
||
|
end voltage 3.0V |
||||
|
8 |
Fast charge |
Constant Current 0.5C5A |
Charge time : Approx 2.5h |
|
|
Constant Voltage 4.2V |
||||
|
0.01 C5A cut-off |
||||
|
9 |
Fast discharge |
Constant current 0.5C5A |
||
|
end voltage 3.0V |
||||
|
10 |
Maximum Continuous Charge Current |
1 C5A |
||
|
11 |
Maximum Continuous Discharge Current |
1C5A |
||
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
Bare Cell |
||||
|
Discharge: -20~60℃ |
||||
|
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
|
14 |
Pack Dimension |
High: max62mm Width: max40mm |
Initial Dimension |
|
