中國鋰電池製造商 OEM 無線設備鋰聚合物電池 BZ 401323 3.7V 80mAh 鋰聚合物電池
價格：0.9-1.05美元/件
最小訂單：3000件
如需訂購請與我們聯系！
品牌名稱：BZ
型號：401323
類型：鋰聚合物
標稱電壓：3.7V
尺寸：4*13*25mm
標稱容量：80mAh
產品名稱：401323鋰離子電池
保固期：1 年
重量：2公克
循環壽命：500次
容量：80mAh
電壓：3.7V
應用：無線設備
證書：CE/RoHS/UN38.3/MSDS/KC/UL/CB/IEC62133
付款方式：Paypal.TT.Escrow.Western Union
最大充電電流：1C

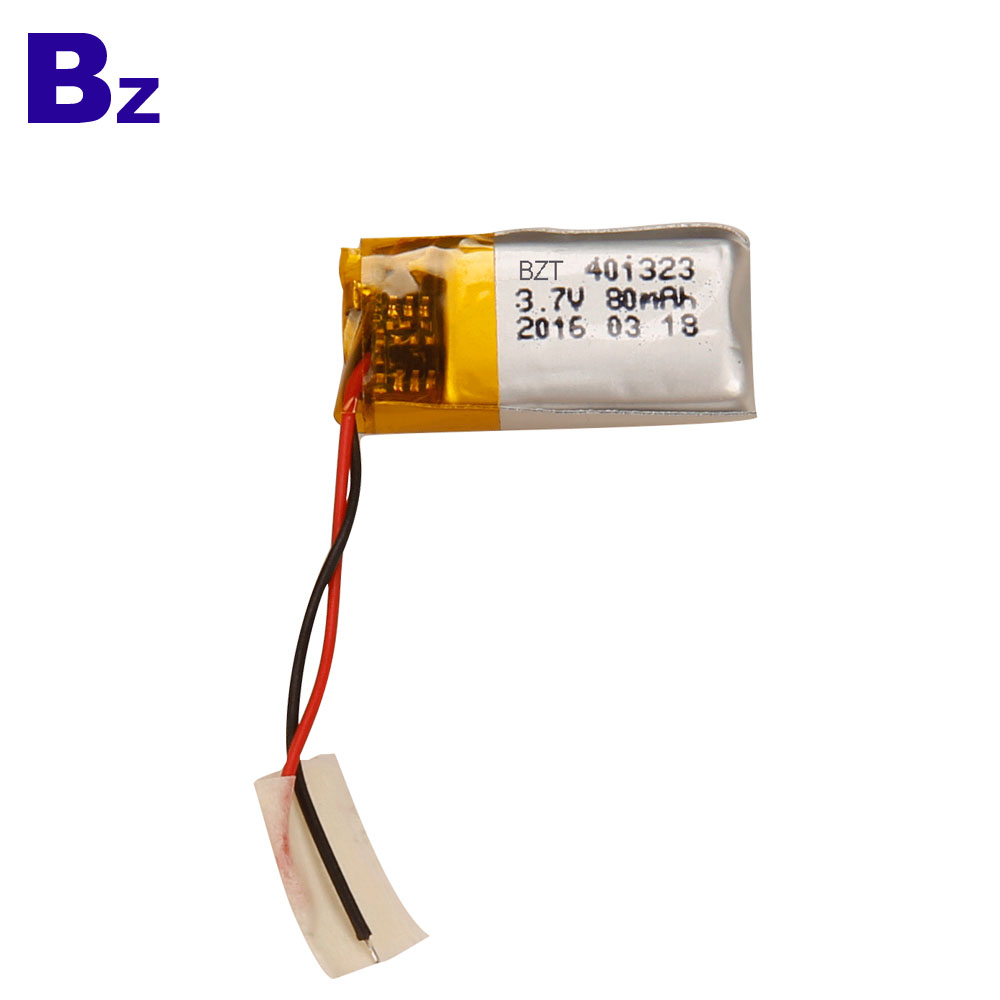

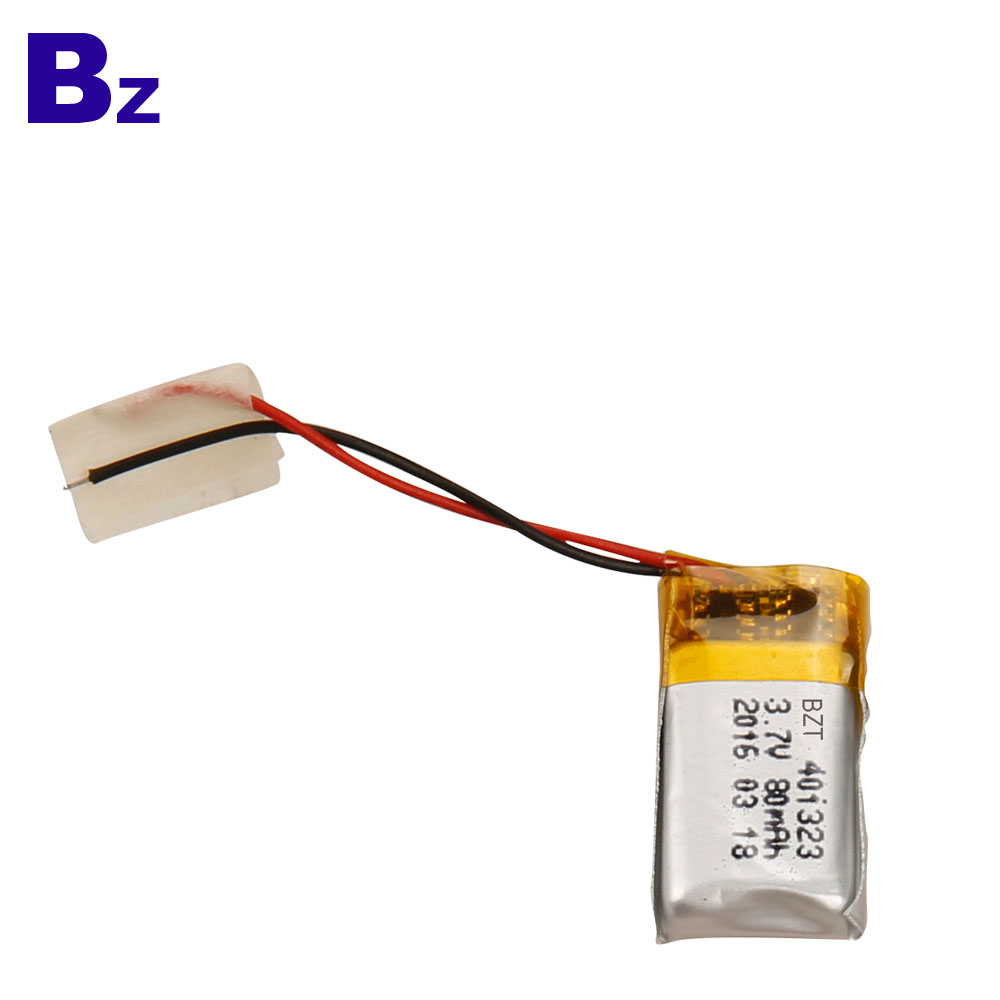

Digital Battery - BZ 401323 - 3.7V - 80mAh - Lithium Ion Battery - Rechargeable
| No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity
|
Typical |
85mAh |
Standard discharge（0.2C C5A) after Standard charge |
|
Minimum |
80mAh |
|||
|
2 |
Nominal Voltage
|
3.7V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of Discharge
|
2.75V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage
|
4.2±0.03V |
||
|
5 |
Internal Impedance
|
≤300mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
|
6 |
Standard charge
|
Constant Current 0.2C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 6h |
|
|
7 |
Standard discharge
|
Constant current 0.2 C5A end voltage 2.75V |
||
|
8 |
Fast charge
|
Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 3.5h |
|
