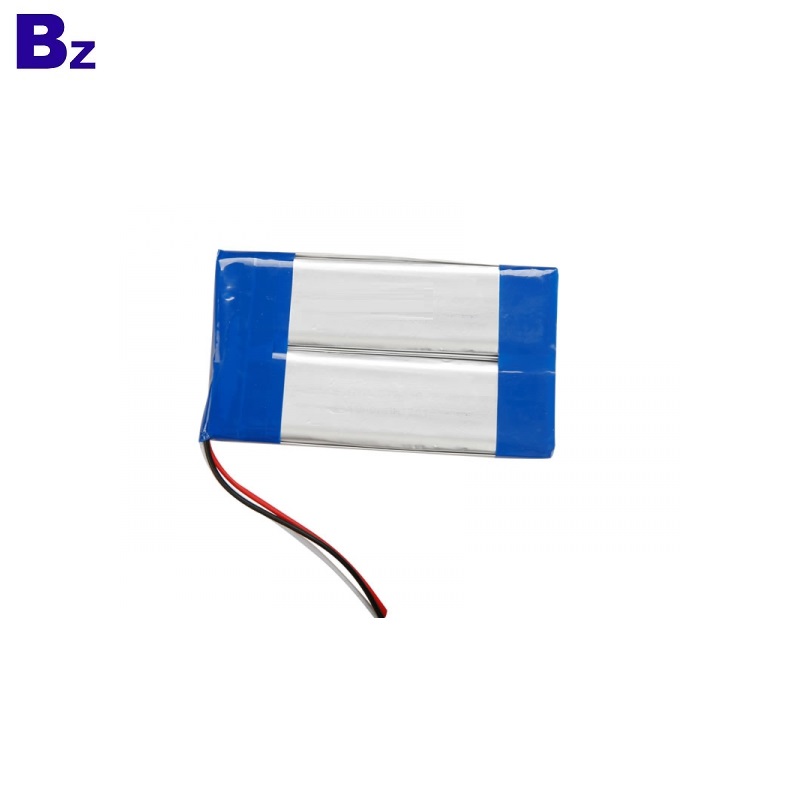

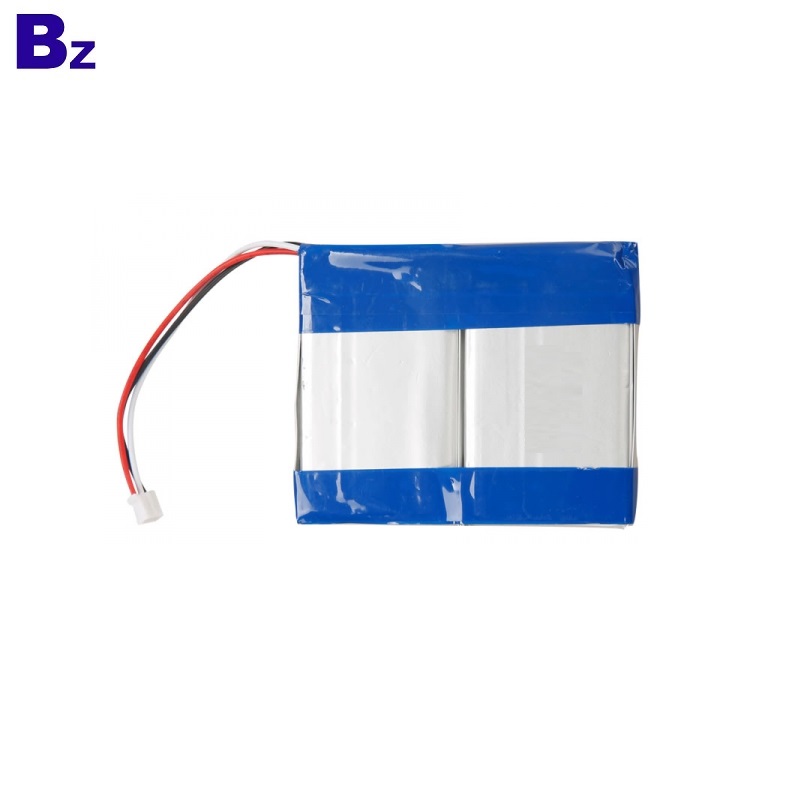

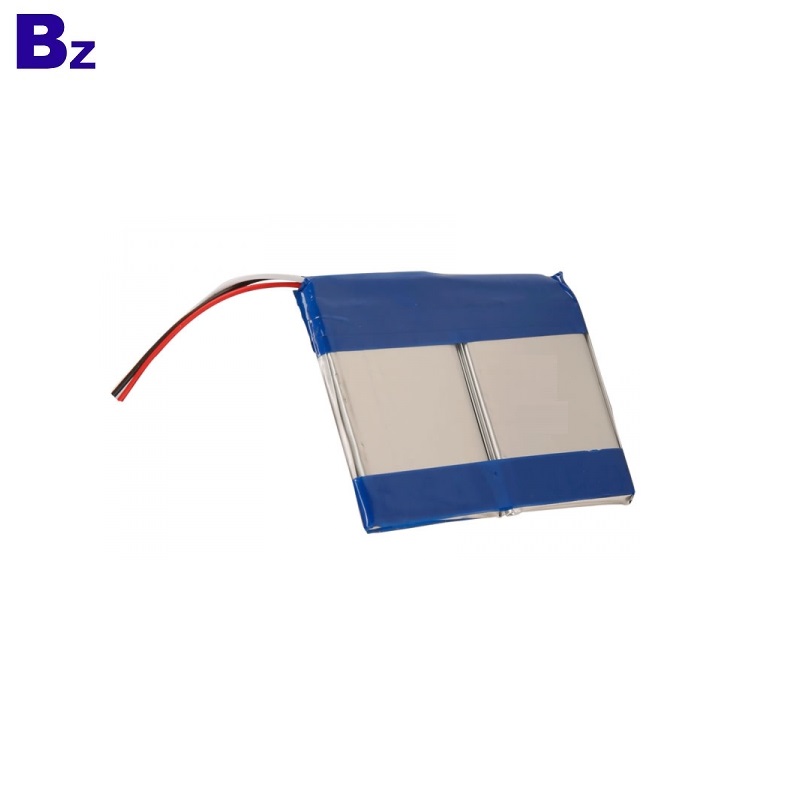

中國鋰電池製造商客製化醫療電池 BZ 675696 7.4V 1800mAh 可充電鋰電池
價格：US $ 1.2-1.5 /安培
最低訂購：1,000安培
如需訂購鋰電池請聯繫我們！
品牌名稱：BZ
型號：675696
類型：鋰聚合物
標稱電壓：7.4V
尺寸：13.5*56*99mm
標稱容量：1800mAh
產品名稱：675696 2S鋰離子電池
保固期：1 年
重量：34克
循環壽命：500次
容量：1800mAh
電壓：7.4V
應用：醫療設備
證書：CE/RoHS/UN38.3/MSDS
付款方式：Paypal.TT.Escrow.Western Union
最大充電電流：1C
Medical Battery - BZ 675696 - 7.4V - 1800mAh - Lithium Ion Battery - Rechargeable
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical
|
1850mAh |
Standard discharge（0.2C C5A) after Standard charge
|
|
Minimum |
1800mAh |
|||
|
2 |
Nominal Voltage |
7.4V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of Discharge |
5.8V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage
|
8.4±0.03V |
|
|
|
5 |
Internal Impedance
|
≤160mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
|
6 |
Standard charge |
Constant Current 0.2C5A Constant Voltage 8.4V 0.01 C5A cut-off |
Charge time : Approx 6h |
|
|
7 |
Standard discharge
|
Constant current 0.2 C5A end voltage5.8V |
|
|
|
8 |
Fast charge
|
Constant Current 1.0C5A Constant Voltage 8.4V 0.01 C5A cut-off |
Charge time : Approx 2.5h |
|
