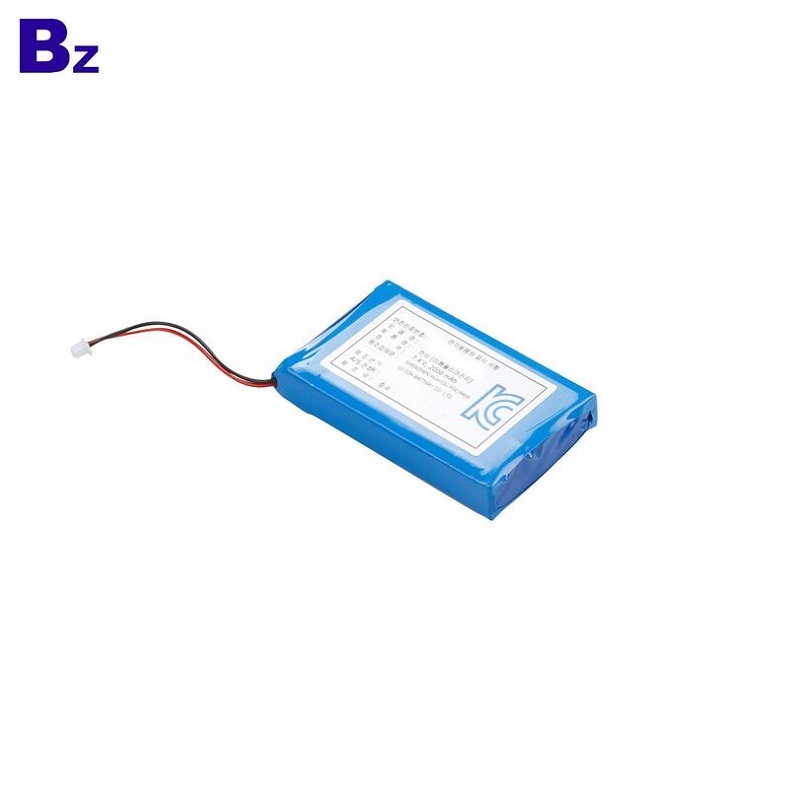

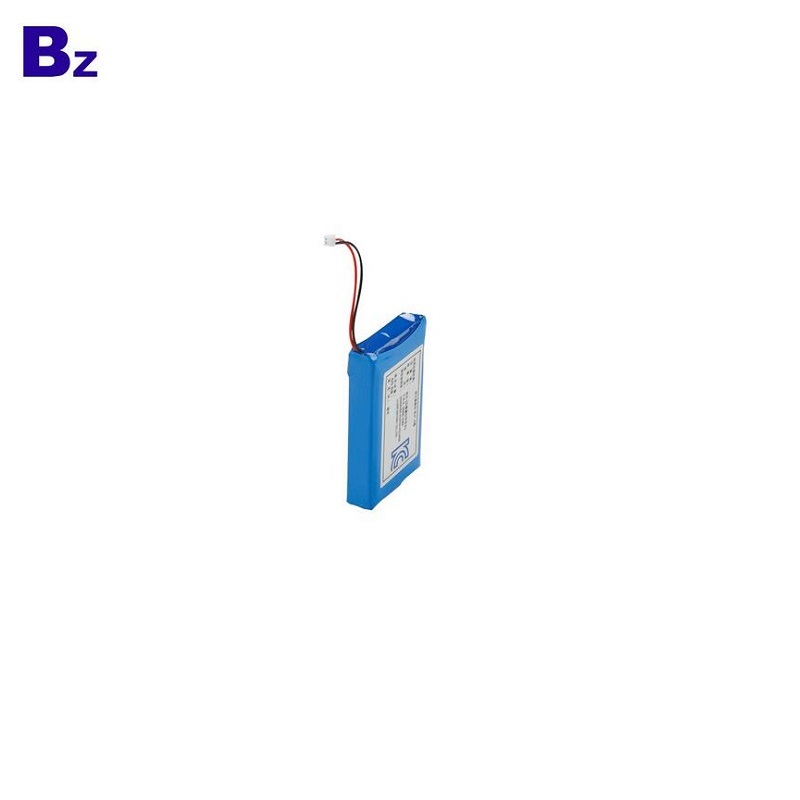

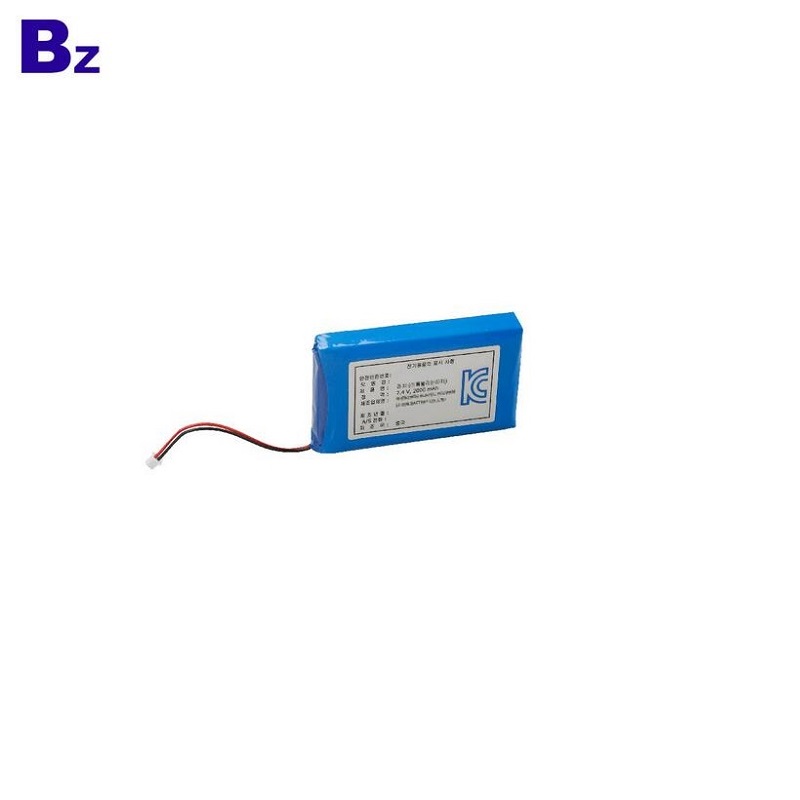

中國鋰電池製造商客製化玩具電池 BZ 654165 7.4V 2000mAh 可充電鋰電池
$5.50
In stock
SKU
BZ 654165 7.4V
價格：US $ 1.2-1.5 /安培
最低訂購：1,000安培
如需訂購鋰電池請聯繫我們！
產地：中國廣東
品牌名稱：BZ
型號：654165
類型： 鋰離子電池
標稱電壓：3.7V
尺寸：13*41*68mm
標稱容量：2000mAh
產品名稱： 654165
保固期：1 年
重量：76克
循環壽命：500次
容量：2000mAh
電壓：7.4V
應用：醫用電池
證書：CE/RoHS/UN38.3/MSDS
付款方式：Paypal.TT.Escrow.Western Union
Product Parameters
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 1610mAh | Standard discharge(0.2C C5A) after Standard charge |
| Minimum | 1600mAh | |||
| 2 | Nominal Voltage | 7.4V | Mean Operation Voltage | |
| 3 | Voltage at end of | 6.0V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 8.4±0.03V | ||
| 5 | Internal Impedance | ≤80mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 8.4V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 6.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 8.4V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage 6.0V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1 C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| at the shipment state | ||||
| less than 3 months: -20~40℃ | ||||
| 14 | Pack Dimension |
High: max68mm Width: max41mm Thickness: max13mm |
Initial Dimension | |
