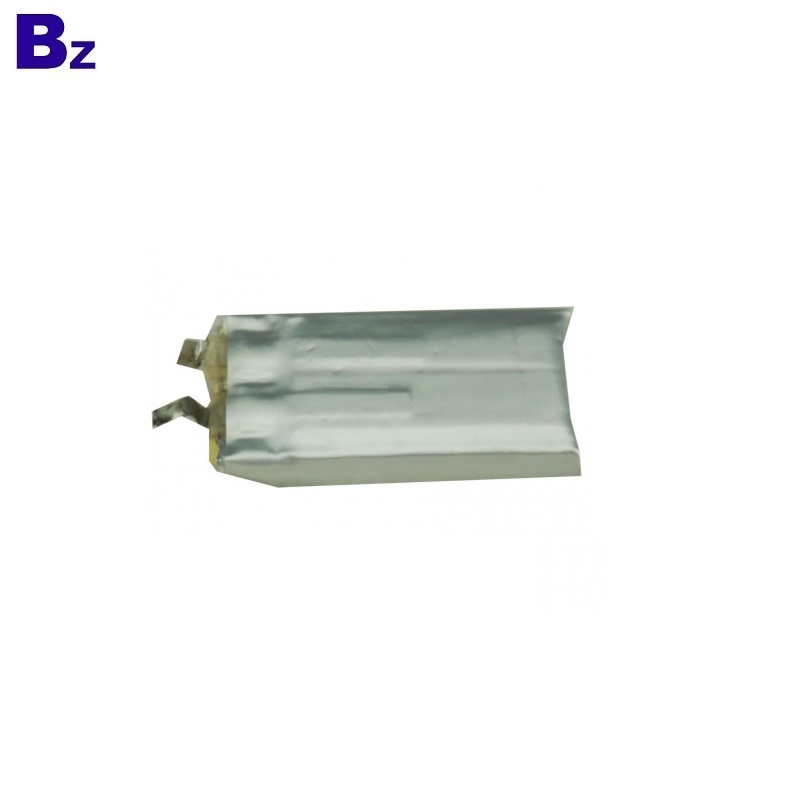

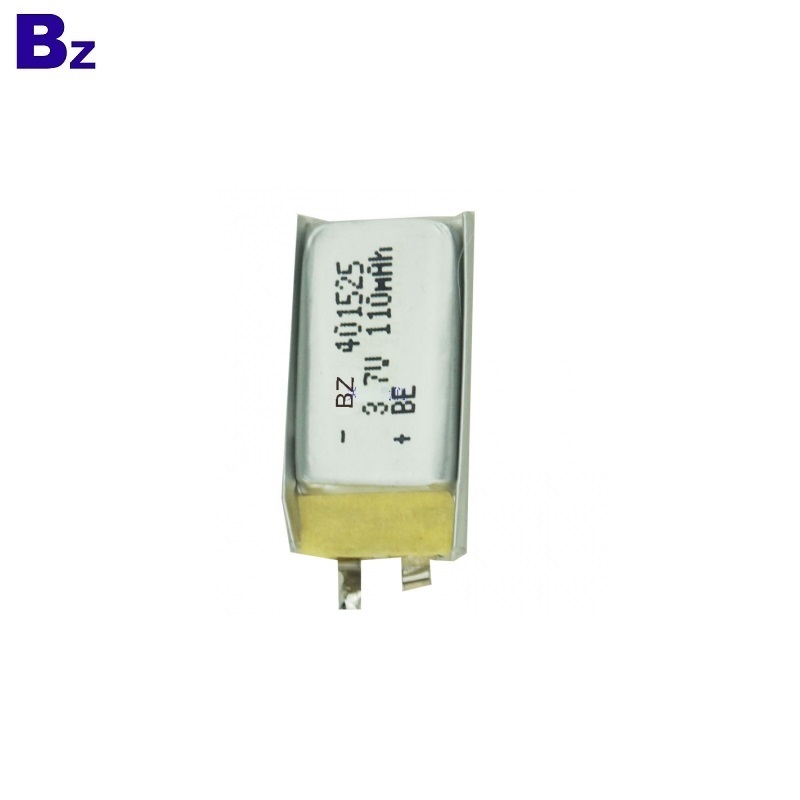

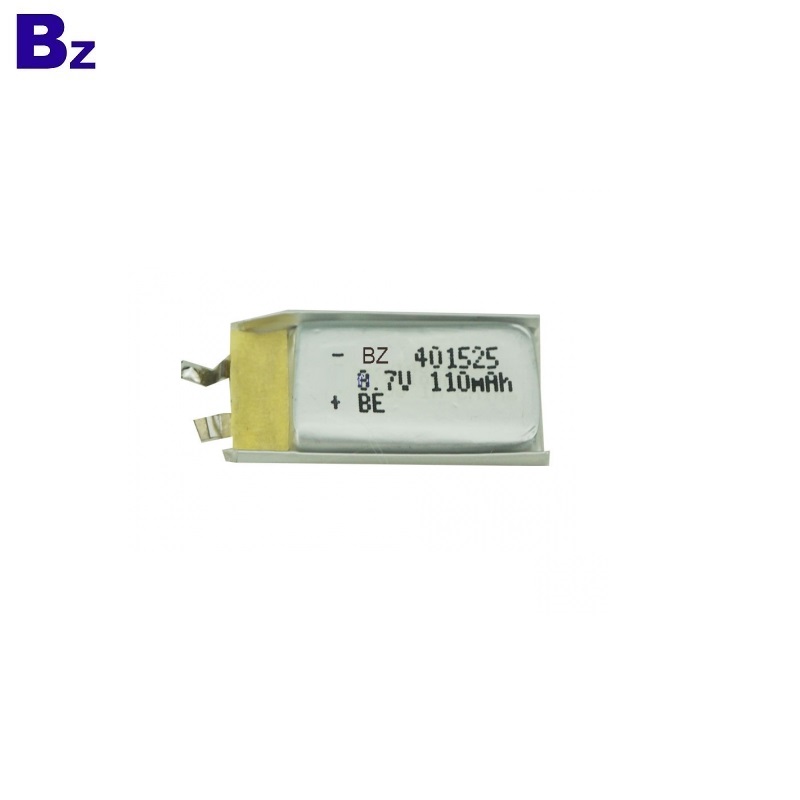

中國最佳鋰電池製造商 ODM 數位設備電池 BZ 401525 110mAh 3.7V 鋰離子聚合物電池
$0.95
In stock
SKU
BZ 401525
價格：US $ 1.2-1.5 /安培
最低訂購：1,000安培
如需訂購鋰電池請聯繫我們！
品牌名稱：BZ
型號：401525
類型：鋰聚合物
標稱電壓：3.7V
尺寸：4*15*25mm
標稱容量：110mAh
產品名稱：401525鋰離子電池
保固期：1 年
重量：2公克
循環壽命：500次
容量：110mAh
電壓：3.7V
應用：穿戴式裝置
證書：CE/RoHS/UN38.3/MSDS
付款方式：Paypal.TT.Escrow.Western Union
最大充電電流：1C
BZ 401525 110mAh 3.7V Cheap Lipo Battery
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 115mAh | Standard discharge（0.2C C5A) after Standard charge |
| Minimum | 110mAh | |||
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
| 3 | Voltage at end of | 3.0V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 4.2±0.03V | ||
| 5 | Internal Impedance | ≤250mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 3.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage 3.0V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| less than 3 months: -20~40℃ | at the shipment state | |||
| 14 | Pack Dimension |
High: max27mm Width: max15mm Thickness: max4mm |
Initial Dimension | |
