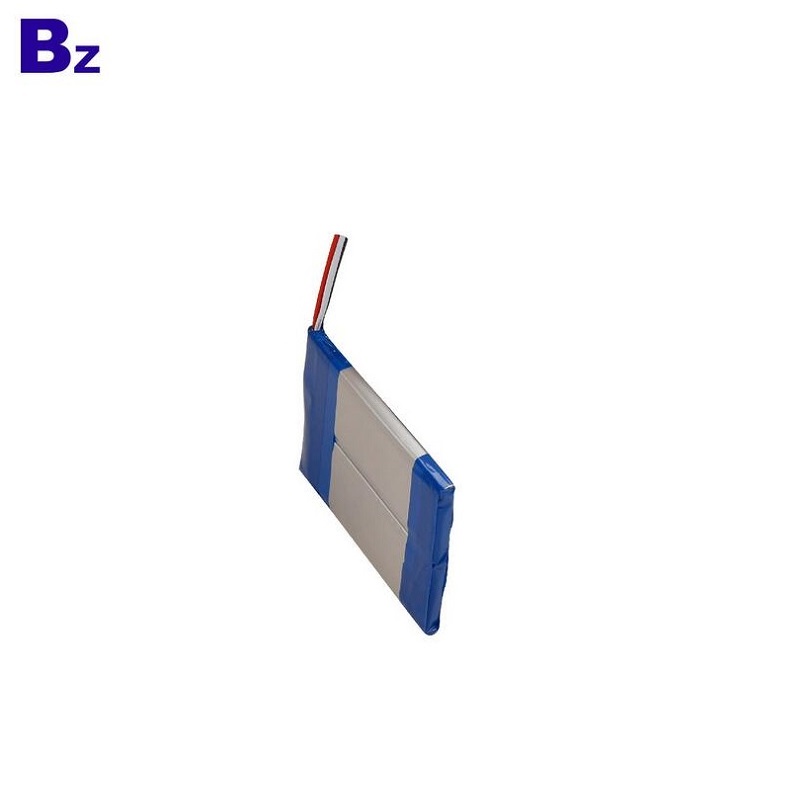

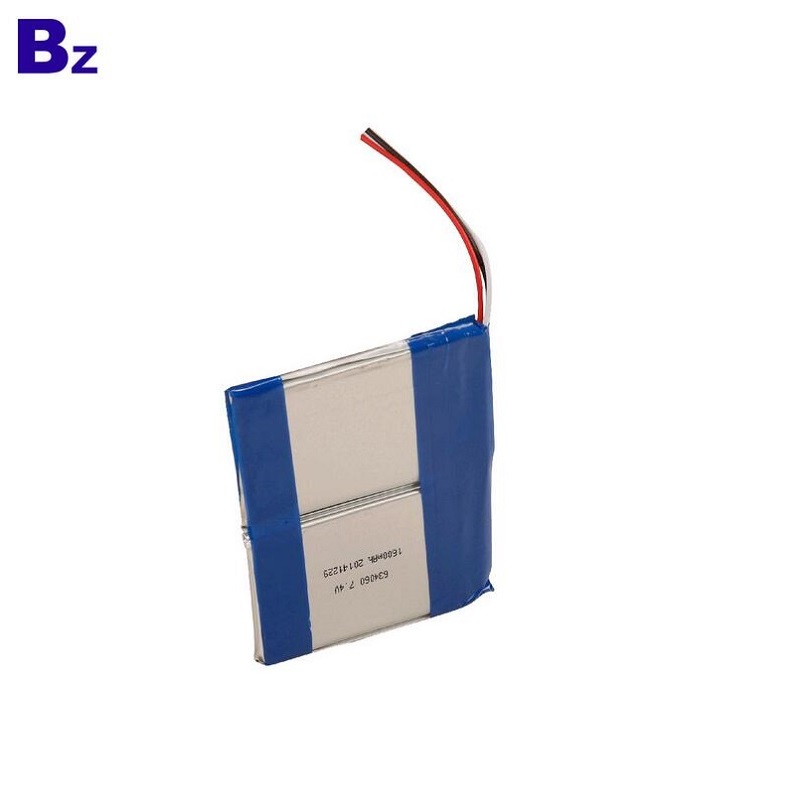

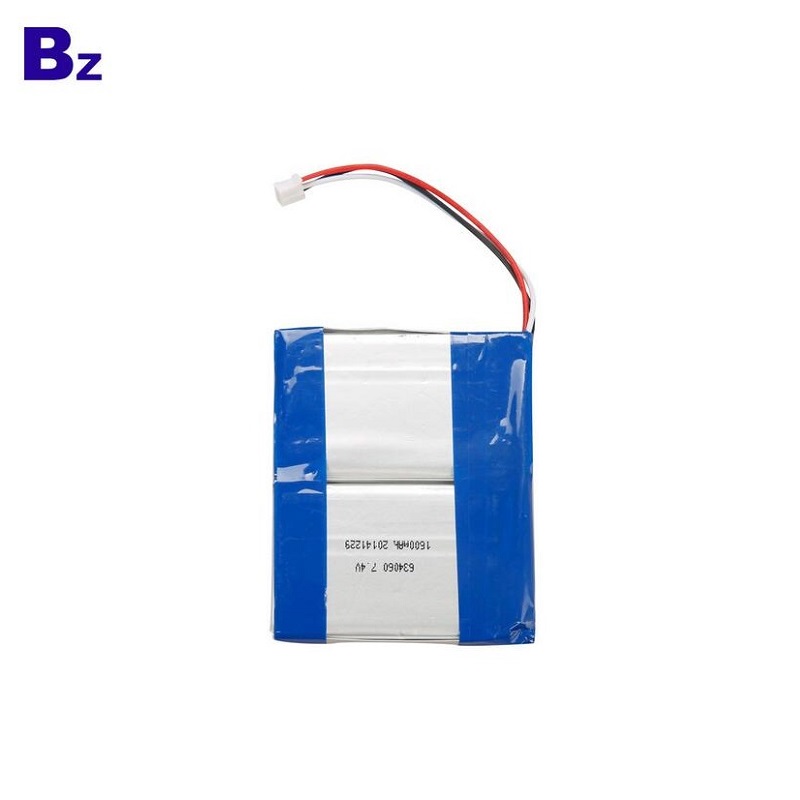

中國最佳鋰電池製造商為醫療設備客製化高品質電池 BZ 634060 7.4V 1600mAh 鋰聚合物電池
$5.20
In stock
SKU
BZ 634060 7.4V 1600mAh
價格：US $ 1.2-1.5 /安培
最低訂購：1,000安培
如需訂購鋰電池請聯繫我們！
產地：中國廣東
品牌名稱：BZ
型號：634060
類型： 鋰離子電池
標稱電壓：7.4V
尺寸：13*40*63mm
標稱容量：1600mAh
產品名稱： 634060-2S
保固期：1 年
重量：60克
循環壽命：500次
容量：1600mAh
電壓：7.4V
應用：醫療設備
證書：CE/RoHS/UN38.3/MSDS
付款方式：Paypal.TT.Escrow.Western Union
Product Parameters
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 1620mAh | Standard discharge(0.2C C5A) after Standard charge |
| Minimum | 1600mAh | |||
| 2 | Nominal Voltage | 7.4V | Mean Operation Voltage | |
| 3 | Voltage at end of | 6.0V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 8.4±0.03V | ||
| 5 | Internal Impedance | ≤80mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 8.4V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 6.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 8.4V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage 6.0V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1 C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| at the shipment state | ||||
| less than 3 months: -20~40℃ | ||||
| 14 | Pack Dimension |
High:max62mm Width: max 40.5mm Thickness: max13mm |
Initial Dimension | |
